5G 4G LTE Outdoor Antenna 698-3800MHz 5dBi SMA Male (1m Cable)

Designed for outdoor, industrial, and mobile applications, this high-performance 5G/4G LTE antenna provides reliable cellular signal reception across a wide 698-3800MHz frequency range.

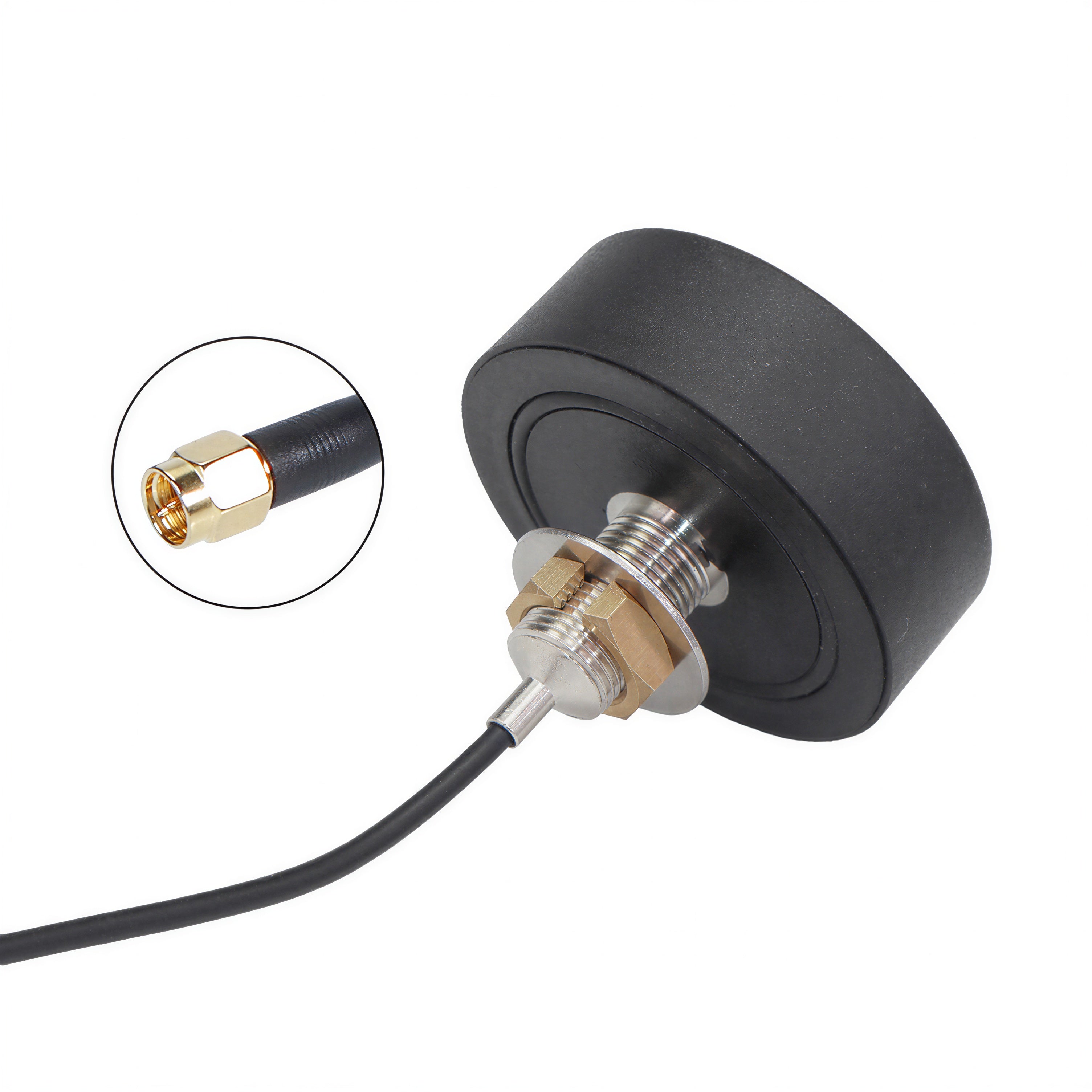

Featuring a built-in 28dB low-noise amplifier (LNA) and a compact weatherproof enclosure. The rugged M12 screw-mount design ensures a secure installation on enclosures, vehicles, equipment cabinets, and outdoor installations.

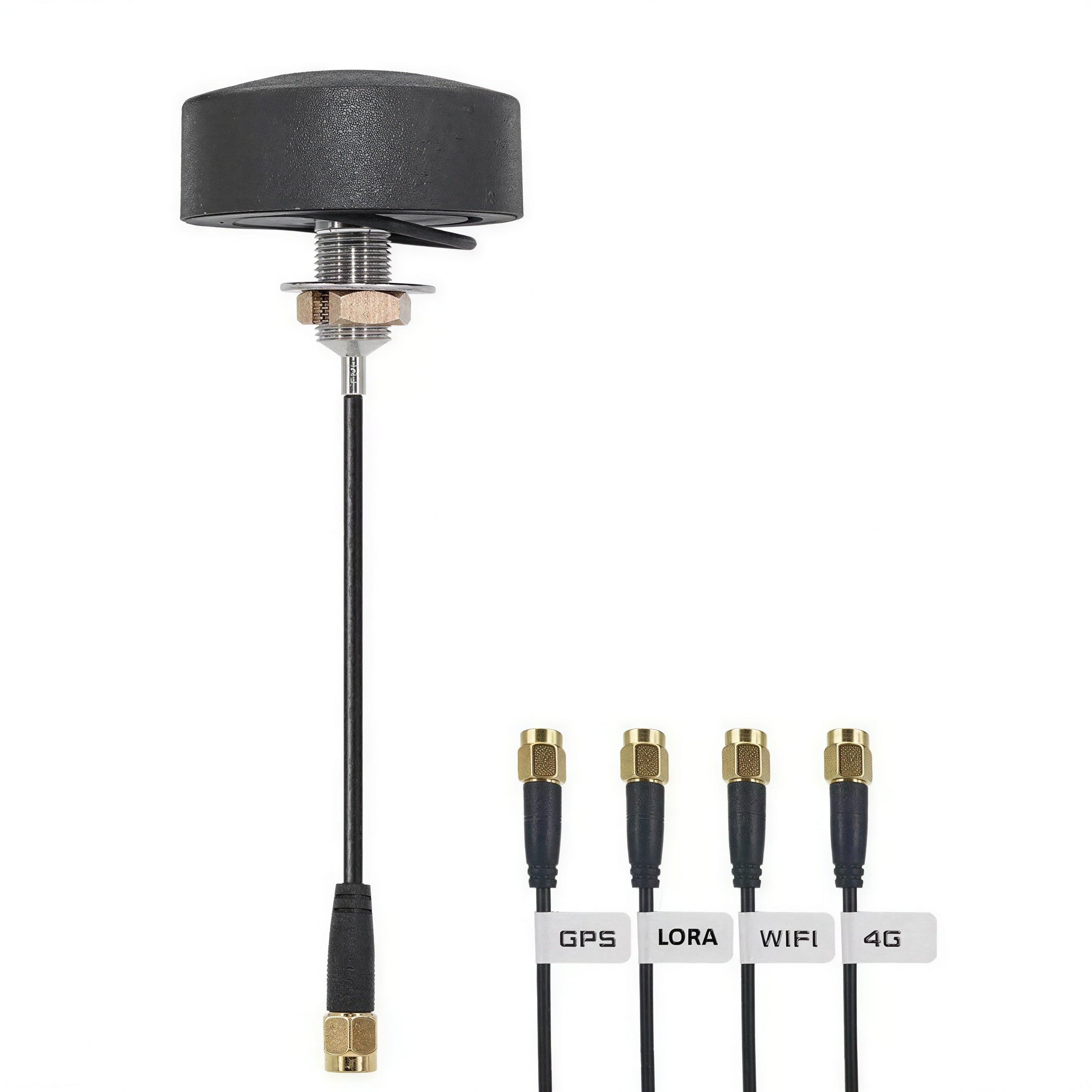

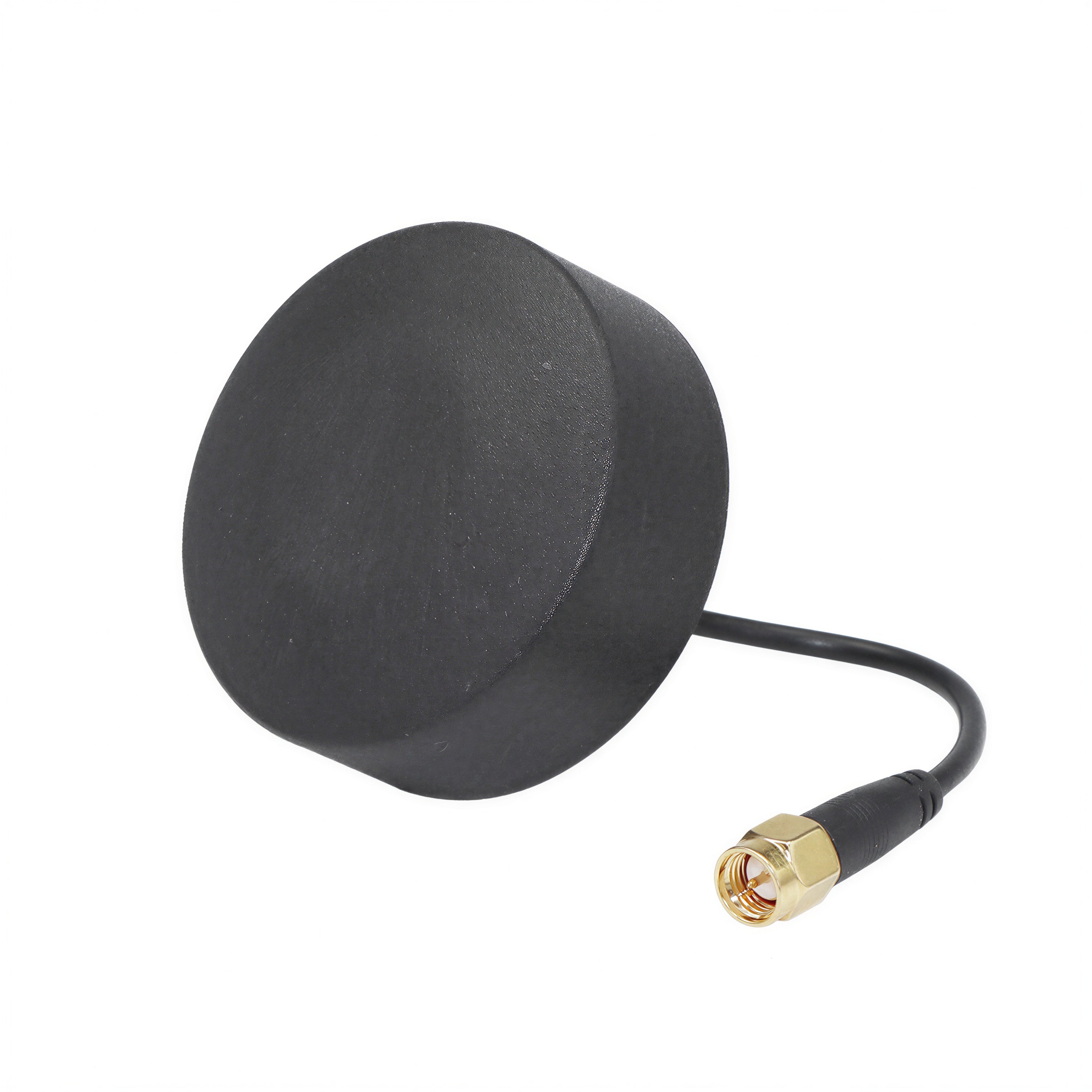

The antenna is supplied with a 1m Low Loss LMR100 cable terminated with an SMA male connector, making it compatible with a wide range of 4G LTE and 5G cellular routers, gateways, modems, and IoT devices.

Features

• Wide 698-3800MHz frequency coverage for 4G LTE and 5G cellular networks
• Built-in 28dB low-noise amplifier (LNA) for improved signal performance
• 4-5dBi antenna gain with omnidirectional coverage
• Waterproof and weather-resistant design for outdoor installations
• Secure M12 screw mount for permanent installations
• Compatible with cellular routers, IoT gateways, and communication modules
• Supplied with 1m LMR100 low-loss cable and SMA Male connector

Specifications

Operating Frequency Range: 698 - 3800MHz

Positional Gain: 28dBi

Antenna Gain: 4 - 5dBi

Input Impedance: 50Ω

Connector: SMA (Male)

Cable: Low Loss LMR100

Mount: Screw Mount (M12)

Housing Material: ABS

Operating Temperature: -30°C to +60°C

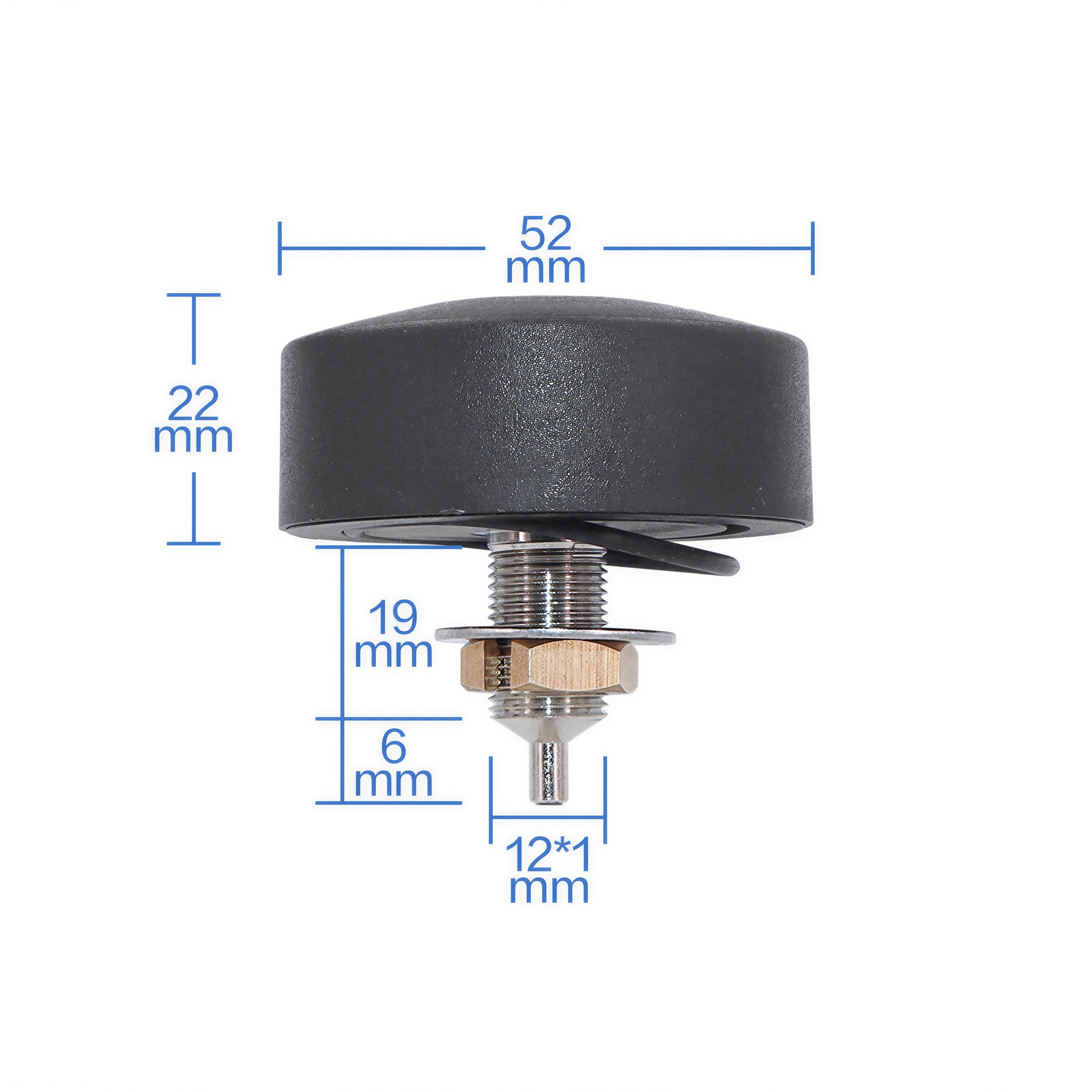

Dimensions: 52mm (Width) × 22mm (Height)

Compliance: RoHS

Packing List

1 x 5G 4G LTE Outdoor Antenna 698-3800MHz 5dBi SMA Male (1m Cable)

1 x Mounting Hardware (M12 Washer & Nut)
