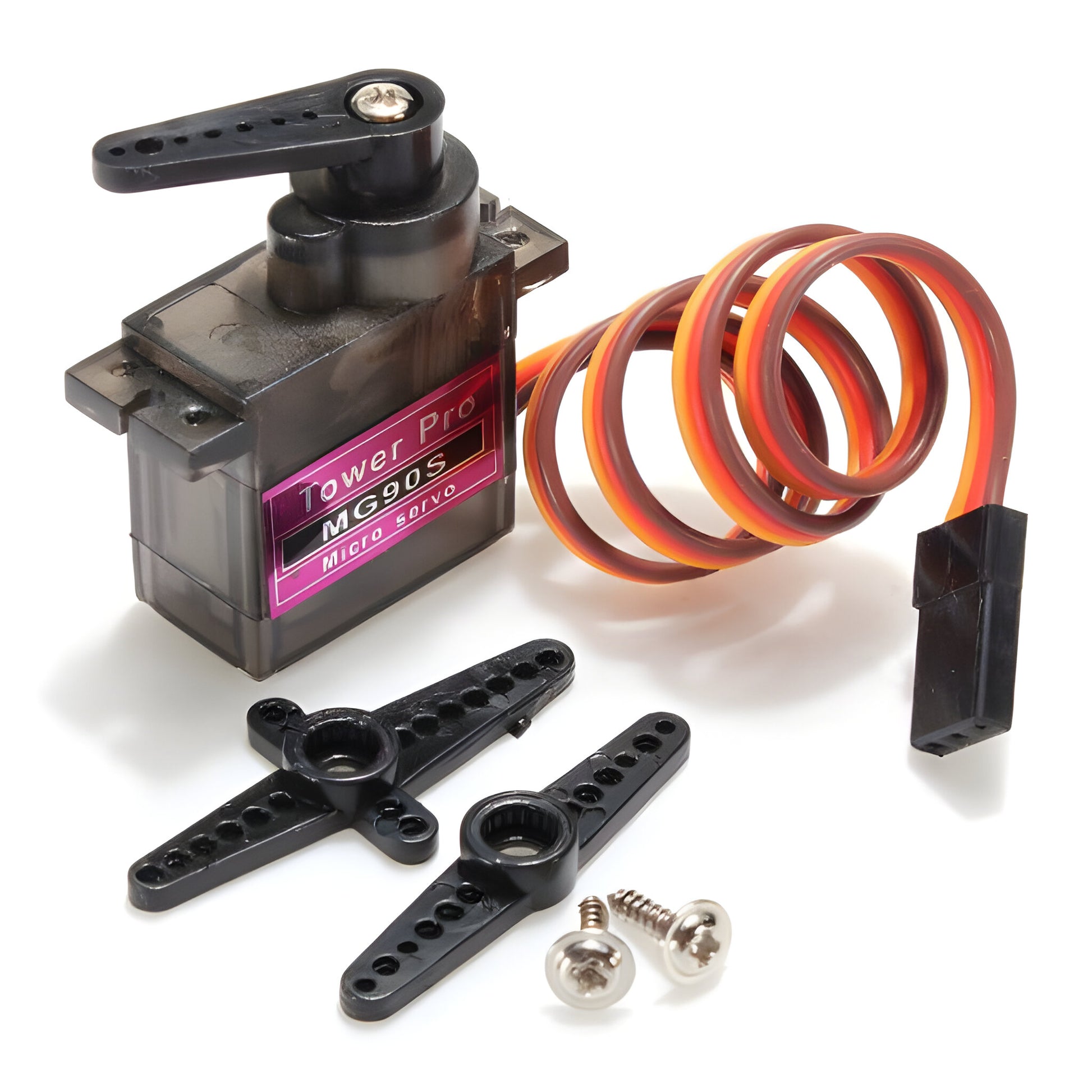

MG90S Metal Gear Micro Servo

$8.95 AUD
$8.95 AUD
GST Included
Brand: Rapid Robotics Australia
Quantity In Stock: 61 Units in Stock
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Rapid Robotics AustraliaSG90 Micro Servo
SG90 Micro Servo
MG995 Metal Gear High Torque Servo
Rapid Robotics AustraliaMG995 Metal Gear High Torque Servo
$8.95 AUD
$8.95 AUD
This is a low-cost micro-size's metal gear RC servo with 1.80kg.cm holding torque (at 4.8V). It is a perfect solution for student robotic projects who build arms or linkages.  The advantage of the RC servo over the DC brush motor is the ability to control its rotation angle.


Features
  • Compatible with Arduino Servo library.
  • Metal gears
  • Operating Voltage: 4.8 - 6VDC
  • Speed at 4.80V(no load): 0.1 s/60°
  • Torque at 4.80V : 1.8 kg.cm (~0.1765 N.m)
  • Size: 22.3 x 11.8 x 28.3mm
  • Weight: 16g
  • Rotation angle: 180 degree
  • Wiring:
    • Brown = GND
    • RED = 5V
    • Orange = Signal
Packing List
  • 1 x MG90S Metal Gear Micro Servo
  • 1 x Servo horns and accessories
